Stone Profiles

STONETILE Brick

Traditional brick coursing, without mortar.

STONETILE Brick reproduces the coursed look of traditional masonry through a mechanically fastened panel system that eliminates mortar-based installation. Panels are manufactured in multiple lengths within a standard 12-inch course for a running-bond appearance.

Images shown in Red.

Product Specification Sheet Where to Buy

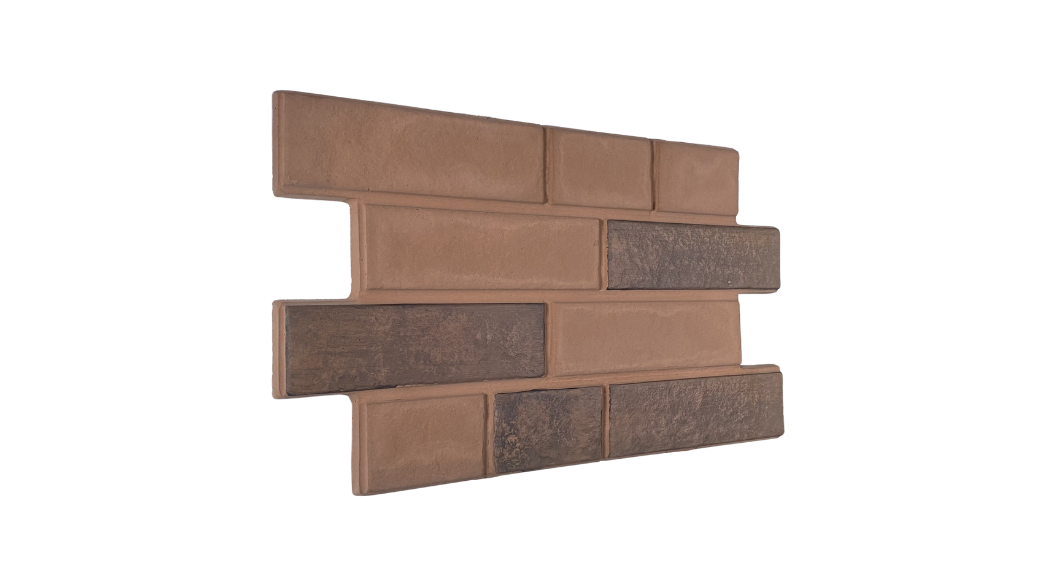

STONETILE Brick individual panel shown at an angle

Designed as a complete cladding system.

STONETILE Brick combines the coursed look of traditional masonry with STONETILE's mechanically fastened panel system, integrated rainscreen cavity, and mortar-free installation approach.

System highlights.

Mechanically fastened

Embedded galvanized hangers provide direct mechanical attachment.

Integrated rainscreen

A continuous 10 mm cavity supports drainage and ventilation behind the cladding.

Mortar-free installation

Panels install mechanically without a traditional mortar bed.

Multiple wall assemblies

Suitable for incorporation into wood, steel, and concrete wall assemblies.

Specifications.

Material High-density limestone concrete

Panel Thickness Approx. 1.4 in. including rainscreen

Approx. Weight 8.45 lb / sq. ft.

Attachment Mechanical fastening

Rainscreen Integrated 10 mm cavity

Colour options.

Each STONETILE Brick panel blends multiple accent tones within a single colour option. Swatches below are shown with finished joint treatment for a more accurate representation of the installed wall.

Red

Chicago Red

Antique White

Espresso

Sandstone

Limestone

Slate Grey

Charcoal

Jasper

Quarry Stone

Belgian

Viewing colour on screen

Every effort is made to represent STONETILE finishes accurately online, but physical colour can vary from what appears on a monitor or mobile device. For colour-critical decisions, we recommend reviewing a physical sample.

Designed to look right from every angle.

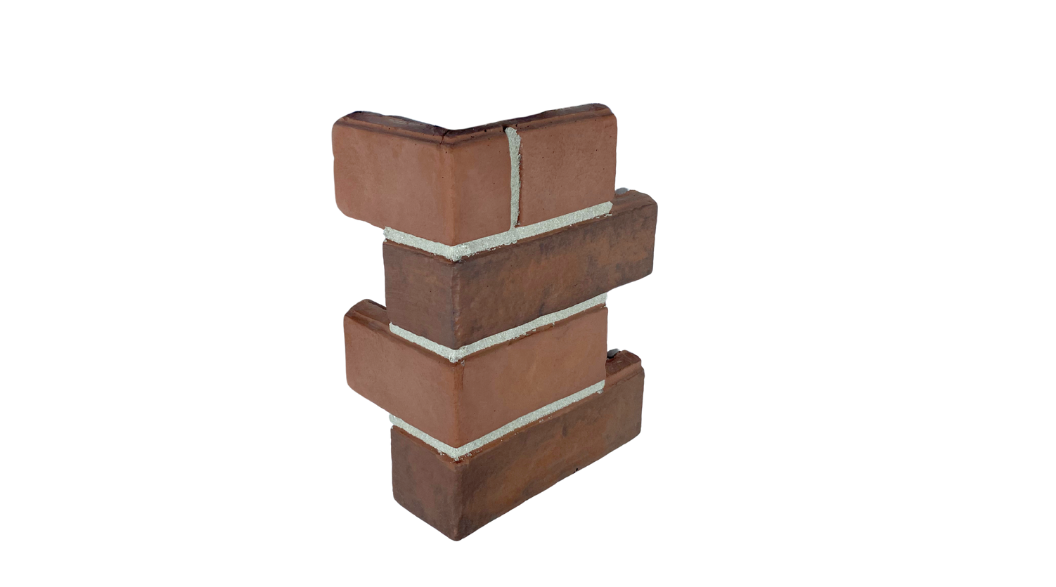

STONETILE Brick 90 degree outside corner piece

90° outside corner

STONETILE Brick is available with a factory-formed 90° outside corner piece, giving outside corners a continuous, wrapped appearance.

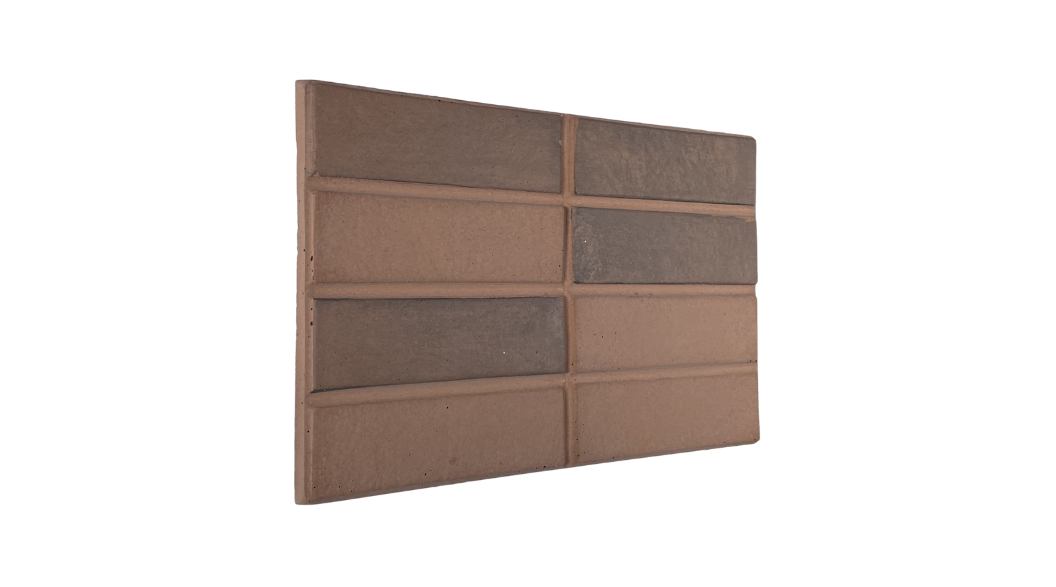

Stacked brick pattern

STONETILE Brick is also available in a stacked panel option, replacing the running-bond layout with a vertically aligned stacked-brick pattern.

Product details.

Review STONETILE Brick panel sizes and available colours, or visit our broader product resources for additional system information.

Panel Sizes

STONETILE Brick panels are manufactured in the following sizes within a standard 12-inch course.

12 in. × 10 in. (End Panel)

12 in. × 12 in.

12 in. × 18 in.

12 in. × 18 in. (End Panel)

12 in. × 19 in.

12 in. × 25 in.

Available Colours

STONETILE Brick is available in the following current colour options:

Red Chicago Red Antique White Espresso Sandstone Limestone Slate Grey Charcoal Jasper Quarry Stone Belgian

Explore STONETILE Colours

Technical resources.

Access STONETILE Brick-specific documentation along with the system-wide technical and installation resources used for project review, specification, and construction.
